MIG205 Pro 120V/240V

Processes：

MIG

Flux Core MIG

Lift TIG

MMA

Spool GUN

Spot Welding

Standard Pack:

MIG Welding Torch(10ft)*1

Torch Acessories*6

Ground Clamp(10ft)*1

Electrode Holder(10ft)*1

Teflon Aluminum Conduit Liner*1

CO2 Gas regulator*1

Gas hose*1

Adapter*1

Rollers *3

MIG Wire*1

Dust Cover*1

Features：
Bluetooth connectivity.
Plate thickness optional.
Weldable Matals: EC
Recommend Wire in: 0.023/0.030/0.035/0.040

Multi-function:hot start,arc-force,2T/4T,parameter storage,anti-stick,and VRD.
Safety Preotection: built-in over-current protection, over-load protection,overheating,and over -voltage function.

Synergic Mode: automatically match current and voltage after the diameter of the welding wire is selected.

$519.99
Quantity:
Inquery
Category:
Visa PayPal Mastercard Shop Pay Generic Dogecoin
 MODEL    MIG205PRO
Input Voltage/Frequency   AC120V±15%  50/60HZ     AC240V±15%  50/60HZ
Output Current(A)/Voltage(v)  MIG: 30-140/11-23          MIG: 30-205/11-28

TIG: 20-140                       TIG: 20-205

Stick: 20-140                     Stick: 20-205
No-load Voltage(v)  U0=64；Ur=15
Standard  ANSI/NEMA/IEC 60974-1
Rated Duty Cycle(%)    ‎60
Protection Degree ‎IP21S
Dimension inch(mm)   17.3*12.7*7.9(439*323*201)
Net Wt. lb(kg)  20.5(9.3)

Versatile Welding Modes:Supports 6 welding modes (MIG, FLUX, TIG, MMA, SPOT, SPOOL GUN) to meet various work needs.


Smart Matching Technology: Features SYN Unification for automatic matching of material thickness, wire feed speed, and current. Adjust one parameter to start MIG welding in three steps.

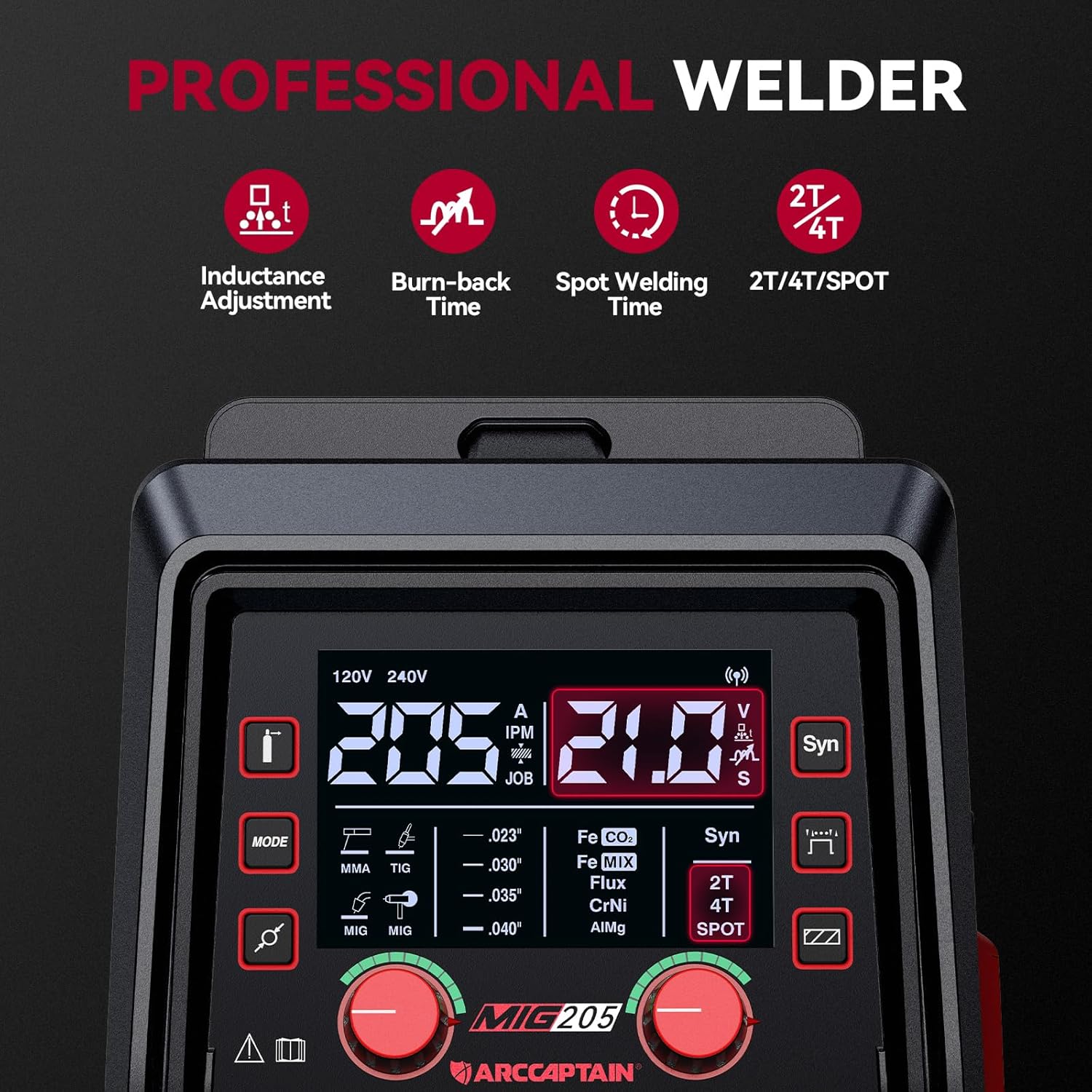

User-Friendly Design: Equipped with a 92*60mm LED screen for straightforward and intuitive operation.


Enhanced Wire Feeding: Power increased from 20W to 40W, with feed speed up from 14 to 16 meters per minute for more stable performance.


Durable Construction: Dual-fan cooling system and triple protection design reduce failure risk by 70%, with VRD for added safety.


Additional Features: Includes 2T/4T switch modes, gas check function, burn back time adjustment, and parameter storage (Engineer Mode).
